Features

Brand	Ipvisola
Origin	China
Category	Solar System, Solar Panel, Ipvisola
Price	BDT 7,000.00

Short Description

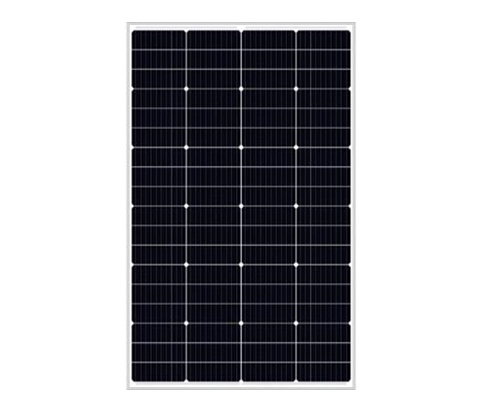

Model: YH200W-18M
Peak Power (Pmax): 200W
Maximum Power Voltage (Vmp): 22.45
Maximum Power Current (Imp): 8.91
Open Circuit Voltage (Voc): 26.01
Short Circuit Current (Isc): 9.41
Module Efficiency (﹪): 20.16

Specifications

ELECTRICAL DATA (STC)
Peak Power (Pmax): 200W
Maximum Power Voltage (Vmp): 22.45
Maximum Power Current (Imp): 8.91
Open Circuit Voltage (Voc): 26.01
Short Circuit Current (Isc): 9.41
Module Efficiency (﹪): 20.16
* STC: irradiance 1000 W/m2, AM 1.5G, and cell temperature of 25°C

TEMPERATURE&MAXIMUM RATING
Maximum System Voltage (V): 1000
Maximum Series Fuse Rating (A): 10
Power Tolerance: 0～+3﹪
Pmax Temperature Coefficients (W/C): -0.350﹪
Voc Temperature Coefficients (V/C): -0.270﹪
Isc Temperature Coefficients (A/C): +0.048﹪
NOCT Nominal Operating Cell Temperature (C): 45±2
Operating and Storage Temperature (C): -40～+85

MECHANICAL CHARACTERISRTICS
Cell Type: 182x60.66 Mono
No. of Cells: 39(3x13)
Dimensions: 1485x668x30mm
Weight: 10.42kg
Front Glass: .2mm high transmission,lowiron,tempered glas
Frame: Anodized Aluminium Alloy
Junction box: IP65/IP67
Output cables: 2.5mm² cable 50cm+mc4
MaxWind Load/Snow Load: 2400Pa/5400Pa

PACKING WAY
20FT: 9Packages/684PCS
40HQ: 20Packages/1840PCS
