Ayesha Automation and Equipment Supplier Website: https://ayeshaautomation.com

Features

Brand	BDCOM
Origin	China
Category	Computer Science and Engineering, Networking, Network Switch, BDCOM
Price	Call for Price

Short Description

Model: S1218-16P

• Number of Channels: 16 Ports
• Power Supply: 260W
• Speed: 10 / 100 Mbps
• Protocol: 802.3af / at Standard

Specifications

Main Feature
Type: Rack-mounted
Port: POE port 16FE
MAC Address Table: 16K
Environment: Operating temperature/humidity: -10°C~50°C,10%-90% non-condensing, Storage temperature/humidity: -40°C~70°C,5%-95% non-condensing

Hardware Features
Interface: Uplink RJ45, Uplink SFP
Power Supply: Built-in AC: 100~220V, 50Hz±10%
Dimensions (L x W x H): 440×208×44
Weight: 2.66

Manufacture Warranty
Warranty: 1 Year

Description

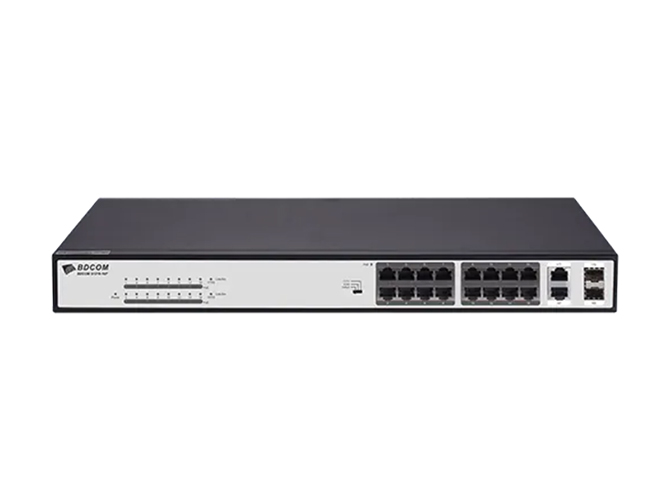

BDCOM S1218-16P 16 Ports PoE Network Switch
The BDCOM S1218-16P PoE Network Switch require high performance and low cost. The switch has a 6KV thunder proof protection. The switch has a fanless design and a metal casing that ensures durability and heat dissipation. The BDCOM S1218-16P PoE Network Switch is a rack mountable PoE switch that provides power and data transmission for up to 16 PoE-enabled devices, such as IP cameras, wireless access points, or VoIP phones. BDCOM S1218-16P PoE Network Switch also has two Gigabit RJ45 ports and two Gigabit SFP ports for connecting to other network devices or uplinking to a higher-level switch. The switch supports IEEE 802.3af/at PoE standards, delivering up to 240W of total PoE power and up to 30W per port. BDCOM S1218-16P Network Switch also features a functional DIP switch that allows you to choose between default mode or CCTV mode, which isolates the ports from each other and extends the transmission distance up to 250 meters. The BDCOM S1218-16P PoE Network Switch has a switching capacity of 5.6G and a MAC address table of 4K, ensuring smooth network performance and scalability. The switch is easy to install & use, no configuration or software require.
