Features

Brand	OLYMPUS
Origin	Japan
Category	Food Engineering, Microscope & Telescope, Olympus
Price	BDT 590,000.00

Short Description

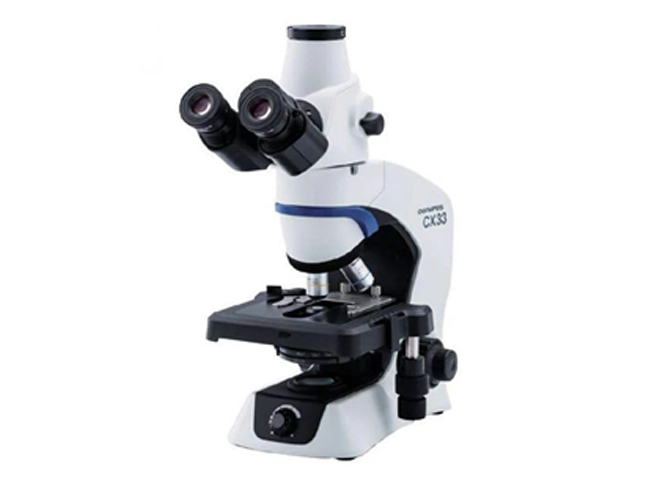

Model: Cx-33

• Brand: OLYMPUS
• Origin:  Japan
• Optical system: Color Corrected Infinity Optical System (CCIS®)
• Observation tube: Triocular head, Siedentopf type
• Trinocular light split: 100:0/20:80
• Inclination: 30º inclined, 360º rotating
• Interpupillary distance: 55-75mm
• Diopter adjustment: On both eyepieces, +/- 5 diopter
• Eyepieces: Wide field N-WF10X/20mm with diopter adjustment

Specifications

Optical system: Color Corrected Infinity Optical System (CCIS®)
Observation tube: Triocular head, Siedentopf type
Trinocular light split: 100:0/20:80
Inclination: 30º inclined, 360º rotating
Interpupillary distance: 55-75mm
Diopter adjustment: On both eyepieces, +/- 5 diopter
Eyepieces: Wide field N-WF10X/20mm with diopter adjustment
Nosepiece: Reversed quadruple
Objective: classification CCIS® EC Plan Achromatic, DIN
Objectives 4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm),
40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)
Objective mounting thread: W 4/5"x1/36" (RMS standard)
Stand type: Upright
Stage: Mechanical stage with built-in low position coaxial stage
Control and sample holder
Stage size: Min. 140x135mm
Travel range: Minimum X&Y 76x50mm
Condenser: Focusable Abbe condenser N.A. 1.25 with slot for
Contrast sliders
Diaphragm: Iris diaphragm
Focus mechanism: Coaxial coarse and fine focusing system with
Tension adjustment
Fine focus precision: 2μm or better
Focusing stroke: 25mm
Upper limit stop preset but adjustable
Filter holder on top of the illuminator
Transmitted illumination LED min. 3W with intensity control
Transformer Internal
Power supply 100-240V (CE)
Digital Camera:
Sensor type: sCMOS
Sensor size: 1/1.8"
Imaging area: 8.92mm (Diagonal)
Capture resolution: 6MP or higher
Pixel size: 2.4x2.4μm
Scan mode: Progressive
Shutter mode: Rolling Shutter
Data transfer: USB 3.1
Max. Frames per second (fps): 3072x2048@ 30fps 1536x1024 @
50fps
Exposure time: 16 μsec to 2 sec
Sensitivity: 425mV (G) @ 1/30 sec
Focusable Length: Min. 16 mm
Support device: TWAIN, SDK and DirectShow Driver
Supported OS: Microsoft Windows 7/8/10, MAC OSX10.9, Linux
Lens mount C-Mount
Functions: Still image and video capture, live and still image
Measurement, image adjustments, white balance, automatic & manual
Exposure, individual objective calibration system.
Power supply: 5V (from USB Port)
Package includes: CS ring adaptor, USB 3.1 cable, 4-dot calibration
slide, Image processing software for PC/OSX/Linu
Following feature facilities should be included in Image processing
software
Toolbar: New / Open / Save / Save As / Export / Capture (MID) /
Image Comparison / Album / Report /Settings / Magnifier
File: New / Open / Save / Save As / Export / Capture (MID) / Image
Comparison / Album / Report
Edit: Selection shapes: Rectangle, Circle, Ellipse, Polygon, Irregular,
Select all, Deselect Region Text / Paint (shapes and icons) / Audio
Images: Adjustments: Brightness, Contrast, Hue-Saturation, RGB,
Mirror / Rotate / Gray Scale / Invert / Image Size Filters: Blur /
Smooth / Sharp / Relief / Grease / Lithograph / Mosaic / Strengthen
Black region / Weaken black region RGB information depending on
Position / X/Y Position.
Measure: Line, Rectangle, Circle, Circle (3 points), Arc, Ellipse,
Polygon, Irregular, FreeHand Line, Angle, Parallel, Marker, Auto
Segment, Auto calculation, Calibration Wizard, Calibration Table
Sub-Menu: Deselect, Lock, Freeze, Freeze All, Delete, Delete All,
Deselect region, up one layer, Down one layer, Up to top, Down to
Bottom, Fit to Window, Full Screen, Scale, Properties, File Info
