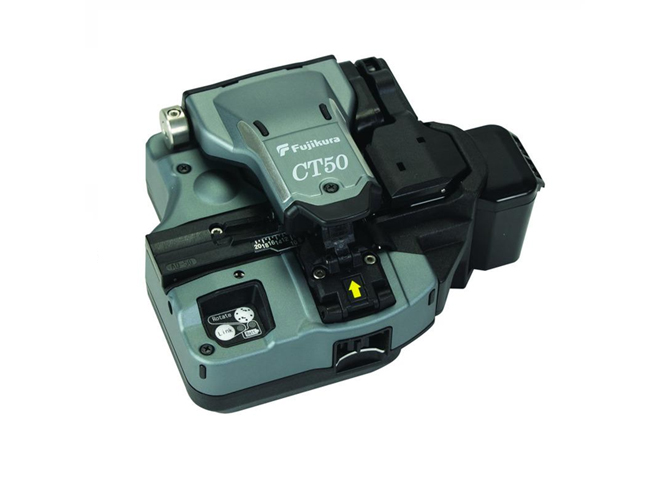

CT50 Fiber Cleaver
Features
| Brand | Fujikura |
| Origin | Japan |
| Category | Computer Science and Engineering, Security System, Optical Fiber Splicer |
| Price | Call for Price |
Short Description
Model: CT50 Fiber Cleaver
Motorized blade rotation
Bluetooth communication
Shock resistant
Simple one-step operation
60,000 cleave blade life
Field serviceable
Specifications
Applicable Fiber
Fiber type : Single-mode optical fiber, Multimode optical fiber
Fiber count : Single up to 16 fibers
Cladding dia. : Approx. 125 µm
Applicable Coating
Fiber plate : AD-10-M24 : Max. 900 µm coating diameter, AD-50 : Max. 3 mm coating diameter
Fiber holder : FH- 50, FH-60, FH-70, FH-100 and FH-110 series holders
Cleave Length
Fiber plate: AD-10-M24 : 5 to 20 mm for CD ≤ 250 µm , AD-50 [CD = coating diameter] , CD= 250µm or less : 5 to 20 mm , 250 µm < CD < 1000µm : 10 to 20 mm , 1000 µm < CD < 3 mm : 14 to 20 mm
Fiber holder : Approx. 10 mm
Cleave Angle
Single fiber : Avg. 0.3 to 0.9 degrees
Fiber ribbon : Avg. 0.3 to 1.2 degrees
Blade Life : Approx. 60,000 fiber cleaves
Physical description
Dimensions W : Approx. 120 mm when closing the lever
Dimensions D : Approx. 95 mm when closing the lever
Dimensions H : Approx. 58 mm when closing the lever
Weight : Approx. 305 g including battery and AD-10-M24
Environmental condition
Temperature : Operate : -10 to 50oC, Storage : -40 to 80oC
Humidity : Operate : 0 to 95% non-condensing, Storage : 0 to 95% non-condensing
Battery : 2 pieces of LR03/AAA dry battery
Wireless interface: Bluetooth 4.1 LE
Screw hole for tripod : 1/4-20UNC
Other features
Blade rotation : Motorized rotation, Manual rotation dial
Replaceable parts : Blade, Clamp arm
Description
The CT50 features automated blade rotation, unprecedented durability, and simplistic maintenance unseen with any other cleaver. Paired with a Bluetooth enabled Fujikura Cleavers
splicer, cleaver blade positions can be automatically advanced when needed based on cleave count or cleave quality. If automated rotation is not desired, the blade position can be advanced at the touch of a button, no tools required. The easy to read blade position indicator clearly displays the selected position. The Bluetooth® feature, along with simplified mechanical operation, increases overall productivity and reliability. The fiber clamp opens beyond 90 degrees and readies the blade for cleaving in the same motion. This allows easy viewing of the distance scale used to gauge cleave length. The 16-position blade yields 60,000 single-fiber cleaves, or 5,000 12-fiber ribbon cleaves. The built-in scrap collector conveniently stores fiber shards until they can be safely discarded.
The CT50 is an industry first cleaver ruggedized to withstand severe shock, including drops up to 30 inches. If needed, the CT50 is field serviceable with all precision components easily replaced in the field.
