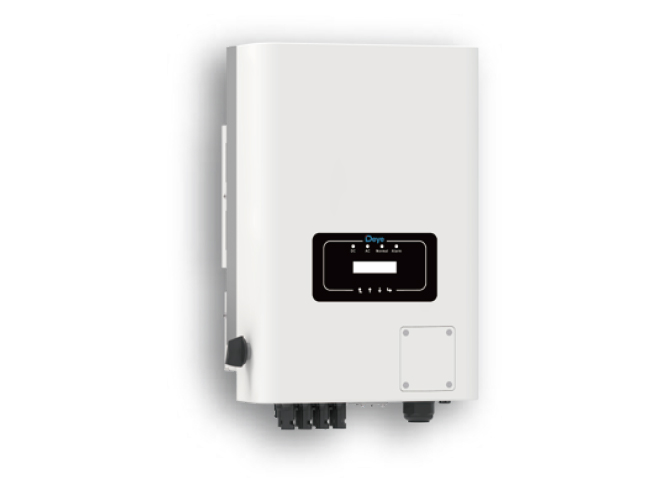

Deye Three Phase ON GRID Inverter SUN-20K-G05
Features
| Brand | Deye |
| Origin | China |
| Category | Food Engineering, Solar System, Solar Inverter, ON-Grid Inverter, Balance & Scale, Platform Scale |
| Price | Call for Price |
Short Description
Model: SUN-20K-G05
- Max. PV Input Power (kW): 26
- Max. PV Input Voltage (V): 1100
- Start-up Voltage (V): 250
- MPPT Voltage Range (V): 200-1000
- Rated PV Input Voltage (V): 600
- Max. Operating PV Input Current (A): 26+26
- Max. Input Short Circuit Current (A): 39+39
Specifications
PV String Input Data
Max. PV Input Power (kW): 26
Max. PV Input Voltage (V): 1100
Start-up Voltage (V): 250
MPPT Voltage Range (V): 200-1000
Rated PV Input Voltage (V): 600
Max. Operating PV Input Current (A): 26+26
Max. Input Short Circuit Current (A): 39+39
No. of MPP Trackers/No. of Strings MPP Tracker: 2/2+2
AC Output Side
Rated AC Output Active Power (kW): 20
Max. AC Output Apparent Power (KVA): 22
Rated AC Output Current (A): 30.3/29
Max. AC Output Current (A): 33.4/31.9
Rated Output Voltage/Range (V): 220/380V, 230/400V 0.85Un-1.1Un
Grid Connection Form: 3L/N/PE
Rated Output Grid Frequency/Range(Hz): 50/45-55, 60/55-65
Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
Total Current Harmonic Distortion THDi: <3%
DC Injection Current: <0.5%ln
Description
- High Efficiency: Deye inverters are known for their high conversion efficiency, typically ranging from 96% to 98%, which ensures maximum power output from the solar panels.
- Smart Monitoring: Deye inverters often come with built-in monitoring systems, which can be accessed via mobile or web applications, allowing users to track energy production and system status.
- Safety Features: These inverters include multiple safety protections, such as over-voltage, over-temperature, and anti-islanding protection, to ensure reliable and safe operation.
- Long Warranty Period: Deye offers warranties typically ranging from 5 to 10 years, depending on the model and region, making them a reliable choice for long-term use.
