Features

Brand	MASTECH
Origin	--
Category	Electrical and Electronics, Test Equipment, Digital Multimeter
Price	BDT 6,100.00 BDT 6,200.00

Short Description

Key Feature

Model: MS8261
Display 2000 counts.
Auto Power Off.
Transistor hFE 0~1000.
Diode Open Voltage 3.0V.
Continuity Buzzer <70Ω.
Data Hold.
Display Backlight.
Low Battery Display.

Specifications

Brand: MASTECH
Model: MS8261

Specifications:
DC Voltage:
Range: 200mV/2V/20V/200V - 1000V
Resolution: 0.1mV/1mV/10mV/100mV - 1V
Accuracy:±(0.5%+1), ±(0.8%+2)

AC Voltage:
Range: 2V/20V/200 - 750V
Resolution: 1mV/10mV/100mV - 1V
Accuracy: ±(0.8%+3), ±(1.2%+3)

DC Current
Range: 2mA/20mA/200mA - 10A
Resolution: 1μA/10μA/0.1μA - 10mA
Accuracy: ±(0.8%+1), ±(1.5%+1), ±(2.0%+5)

AC Current
Range: 2mA/200mA-10A
Resolution: 1μA/0.1mA - 10mA
Accuracy: ±(1.0%+3), ±(1.8%+3), ±(3.0%+7)

Resistance
Range: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ - 200MΩ
Resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ - 0.1MΩ
Accuracy: ±(0.8%+3), ±(0.8%+1), ±(1.0%+2), ±(5.0%+10)

Capacitance
Range: 2nF/20nF/200nF/2μF/20μF
Resolution: 1pF/10pF/0.1nF/1nF/10nF
Accuracy: ±(4.0%+3)

Certificate: RoHS
Power Supply: 1x9V 6F22 Battery
Product Size: 195mmx92mmx55mm/7.7"x3.6"x2.2"
Accessories: Test leads, Multi-Function Socket, Battery and User's manual
Color Box: 165mm×70mm×225mm
Carton Box: 470mm×375mm×355mm
Carton included: 20



Description

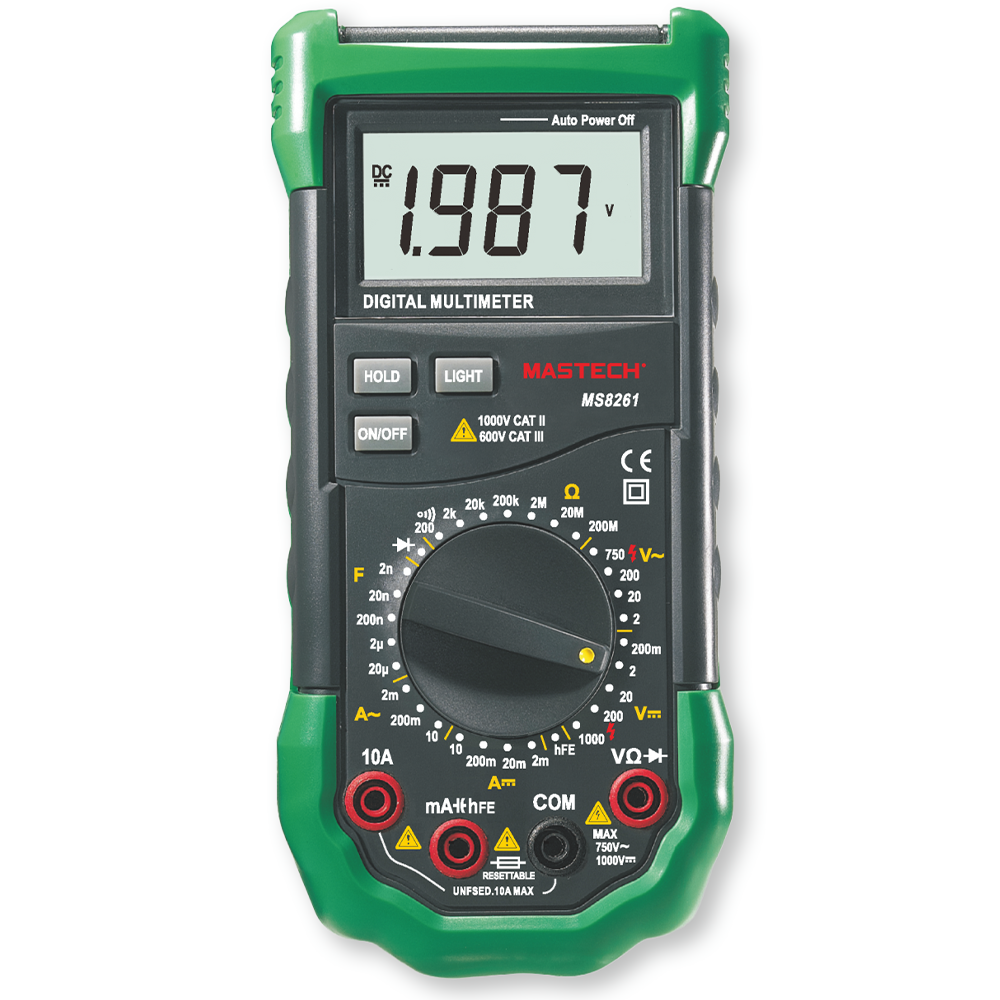

MASTECH MS8261 Digital Multimeter: Convenient and Reliable Electrical Testing Tool

The MASTECH MS8261 Digital Multimeter is designed to meet the diverse needs of professionals and hobbyists alike. With advanced features and robust functionality, the MS8261 ensures user-friendly and reliable measurements for a wide range of electrical testing tasks.
Multifunctional Measurement: Measures AC/DC voltage, AC/DC current, resistance, and capacitance.
Max Display: 2000 counts for clear and detailed readings.
Data Hold: Allows users to freeze the displayed measurement, making it easier to record and analyze results.
Backlight: Easy to read in dim environments.
Safety Certified: Equipped with CAT II 1000V / CAT III 600V safety ratings for secure operation.
Additional Features: Includes hFE transistor, diode test, continuity buzzer, auto power off, and low battery display.
DC Voltage: 200mV to 1000V
AC Voltage: 2V to 750V
DC Current: 2mA to 10A
AC Current: 2mA to 10A
Resistance: 200Ω to 200MΩ
Capacitance: 2nF to 20μF
Benefits:
Versatile Applications: Suitable for a wide range of electrical testing needs, from professional to DIY projects.
Enhanced Safety: Features such as CAT II 1000V / CAT III 600V rating ensure safe operation.
User-Friendly Interface: Simple operation with a clear display and intuitive controls, making it accessible for all users.
Durability: Built to last in demanding environments, ensuring long-lasting performance and reliability.
