Features

Brand	Huawei
Origin	China
Category	Solar System, Solar Inverter, ON-Grid Inverter
Price	Call for Price

Short Description

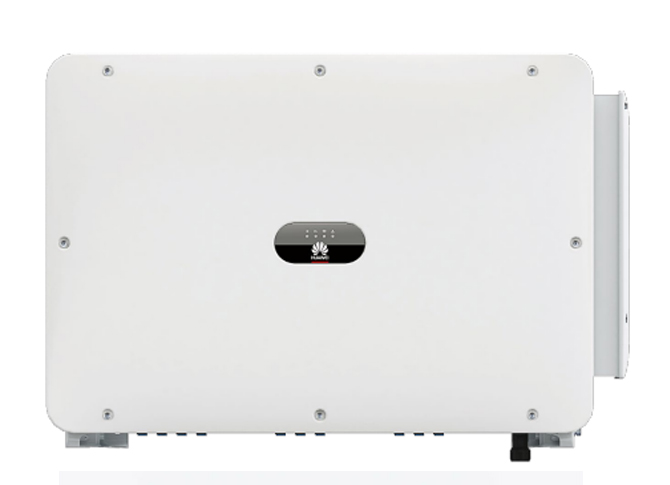

Model: SUN2000-100KTL-INM0

• Max. Input Voltage: 1100V
• Max. Current per MPPT: 26A
• Max. Short Circuit Current per MPPT: 40A
• Start Voltage: 200V
• MPPT Operating Voltage Range: 200V~1000V
• Nominal Input Voltage: 620V@415V; 720V@480V
• Number of Inputs: 20
• Number of MPP Trackers: 10

Specifications

Input:
Max. Input Voltage: 1100V
Max. Current per MPPT: 26A
Max. Short Circuit Current per MPPT: 40A
Start Voltage: 200V
MPPT Operating Voltage Range: 200V~1000V
Nominal Input Voltage: 620V@415V; 720V@480V
Number of Inputs: 20
Number of MPP Trackers: 10

Output:
Nominal AC Active Power: 100000W (415V/480V @50°C)
Max. AC Apparent Power: 110000VA
Max. AC Active Power (cosφ=1): 110000W
Nominal Output Voltage: 240/415V, default 3W + N + PE; 277 / 480 V, 3W + PE
Rated AC Grid Frequency: 50Hz/60Hz
Nominal Output Current: 139.2A @415V; 120.3A @480V
Max. Output Current: 154.6A @415V; 133.7A @480V
Adjustable Power Factor Range: 0.8LG ... 0.8LD
Max. Total Harmonic Distortion: ＜3%
