Features

Brand	RADWAG
Origin	Poland
Category
Price	Call for Price

Short Description

Model: H315.4.6000.C10

• Metrological parameters
• Maximum capacity [Max] 6000 kg
• Minimum load 40 kg
• Readability [d] 2 kg
• Tare range -6000 kg
• Max readability for non-verified scale 500 g
• OIML Class III

Specifications

Metrological parameters
Maximum capacity [Max]: 6000 kg
Minimum load: 40 kg
Readability [d]: 2 kg
Tare range: -6000 kg
Max readability for non-verified scale: 500 g
OIML Class: III

Physical parameters
Display: LCD (backlit)
Weighing pan dimensions: 1500×2000 mm
Packaging dimensions: 2100×1600×600 mm
Cable length: 3 m
Relative humidity: 10% — 85% RH no condensation

Construction
Protection class: IP 65 construction, IP 68 (1h max)/69 indicator

Communication interface
USB Interface: 1
RS232 Interface: 1
Optional interfaces: RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA

Electrical parameters
Power supply: 100 – 240 V AC 50/60 Hz
Optional power supply: internal rechargeable battery
Operation time on batteries: max 7h

Environmental conditions
Operating temperature: -10 — +40 °C

Description

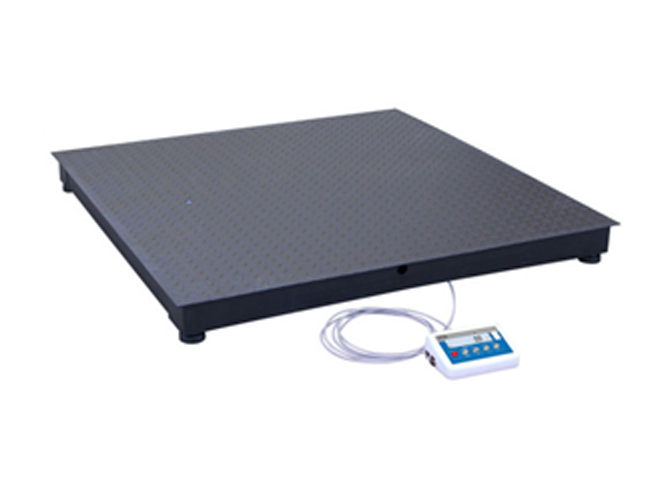

Four sensors platform scale
No matter where you place the load on the platform, the result will always be correct. This is due to the four sensors built into the platform. You will appreciate this especially when weighing an irregularly shaped object.

It has been with us for years, and will stay for a long time to come
The LCD display has accompanied us for long years. During this time it has proven its reliability. It guarantees the readability of the result from many angles and is energy efficient.

Inner power
No access to mains power? Power failure? No problem. Thanks to its internal rechargeable battery, the H315 scale works anyway (up to 7 hours).

Power supply is available at an extra charge. As standard, the scale is equipped with a RS232 cable, to which you can connect most of the accessories from our range.

Not just weighing
But also parts counting, percent weighing, animal weighing and peak hold. The power of H315’s working mods.
Do you require fast and repeatable weight measurement under difficult conditions? The H315 scale is made for that!

Work as you like
The PUE H315 terminal sits on a 3-meter cable that allows you to hang the terminal on the wall. This allows you to arrange your weighing workplace in many ways.

Conveniently, without ramps
You can use the scale as a pit – this allows the load to pass freely through the platform without application of ramps.
