Features

Brand	Hikvision
Origin	China
Category	Computer Science and Engineering, Networking, Networking Cable, Cat-6
Price	Call for Price

Short Description

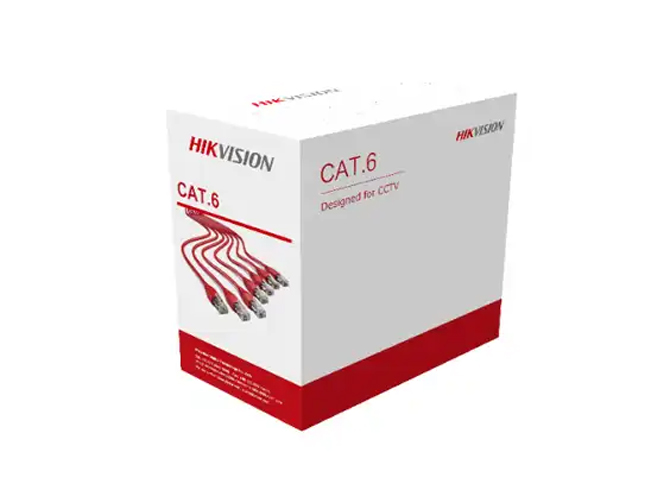

Model: DS-1LN6U-SC0

• Stable electrical performance, compliant with ANSI/TIA-568-C.2, IEC61156, ISO/IEC11801.
• Compliant with RoHS 2.0.
• Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
• Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
• Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).
• Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.

Specifications

Model : DS-1LN6U-SC0
Category: Cat.6
Sheath printing : HIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy  Tracing Code-HS
Reference standard : ISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0
Fire resistance : No

Conductor
Material : Solid-Bare Copper (99.95%)
Diameter : 0.55 ± 0.005 mm, 23 AWG

Insulation
Material : HDPE
Diameter : 0.98 ± 0.05 mm

Sheath
Thickness : 0.50 ± 0.10 mm
Diameter : 6.00 ± 0.30 mm
Material : PVC
Color : Orange
Rip-cord : Yes
Separator : Yes

Sheath physical properties
Before aging: Tensile strength ≥ 13.5 Mpa , Elongation ≥ 150%
Aging period : 100°C × 24h × 10d
After aging: Tensile strength ≥ 12.5 Mpa , Elongation ≥ 125%
Cold bend : -20 ± 2°C × 4h, 8 × cable O.D, no visible cracks

Electrical Characteristics (20°C)
1.0-250.0 MHz impedance: 100 ± 15 Ω @ ≤ 100 MHz , 100 ± 25 Ω @100-250 MHz
1.0-250.0 MHz delay skew : ≤ 45 ns/100 m
DC resistance : ≤ 9.38 Ω/100 m
DC conductor resistance  unbalance : ≤ 5.0%
Package dimension : 400 mm (W) × 400 mm (H) × 240 mm (D) (15.75" × 15.75" × 9.45")
Weight : 12.3 ± 0.5kg
Cable length : (305 ± 1.5) m
Ambient temperature : -20°C to 75°C (-4°F to 167°F)
Operating voltage : 60 V
