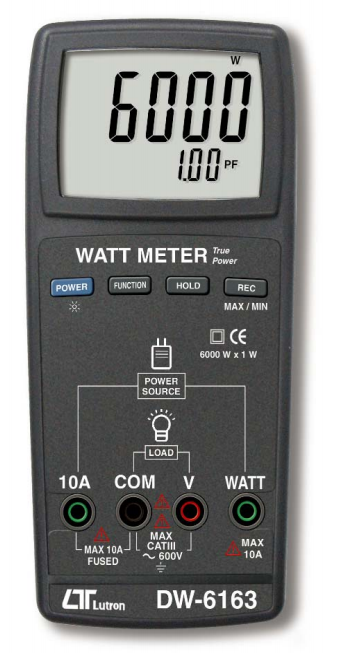

WATT METER - DW-6163
Features
| Brand | LUTRON |
| Origin | Taiwan |
| Category | Electrical and Electronics, Electrical |
| Price | Call for Price |
Specifications
GENERAL SPECIFICATIONS
Brand: LUTRON
Model: DW-6163
Circuit: Custom one-chip of microprocessor LSI circuit.
Display: Large LCD display max. reading 9999. Digit size : 21.8 x 8.5 mm. Dual value display with backlight
Measurement Unit:
ACV (0 to 600.0 V)
ACA (0.01 to 10.00 A)
WATT (0 to 6000 W)
PF (0.01 to 1.00)
Over input: "____" mark indication .
Zero: Automatic adjustment
Sampling Time: Approx. 1 second .
Data Hold: Freeze the display reading .
Memory Recall: Maximum & Minimum value .
Data output: RS232 / USB PC Computer interface.
* Connect the optional RS232 cable UPCB - 02 will get the RS232 plug.
* Connect the optional USB cable - USB - 01 will get the USB plug.
Operation Temperature: 0℃ to 50℃ (32℉ to 122℉).
Operation Humidity: Less than 80% RH
Power Supply: Alkaline or Heavy duty type DC 9V battery 006P, MN1604 (PP3) or equivalent.
Power Consumption: Approx. DC 10 mA
Weight: 398 g/0.88 LB
Dimension: 190 x 88 x 40 mm ( 7.5 x 3.5 x 1.6 inch ).
Accessories Included: Instruction manual (1 PC), Test lead (Red & Black) –(1 Pair)
Optional :
AC TO DC 9V adapter Holster. HS-03, SD card DATA LOGGER, DL-9602SD
Accessories:
USB cable , USB - 01
Data Acquisition software, SW-U801-WIN
Excel Data Acquisition software, SW-E802
SD card data logger, DL-9602SD
ELECTRICAL SPECIFICATIONS (23± 5 ℃)
WATT (TRUE POWER):
Range: 6000 W
Resolution: 1 W
Accuracy: ± (1%+ 5 W)
• Auto range.
• Measuring Signal come from the front LOAD plug terminals.
• Accuracy is test under input signal is sine wave , 50 / 60 Hz.
• ACV ACA frequency response is from 40 to 400 Hz.
• Max. input value, AC voltage : 600V, AC current : 10 A.
• Accuracy @ 23℃ ± 5℃.
WATT (TRUE POWER):
Range: ACV 600 V
Resolution: 0.1 V
Accuracy: ± ( 0.3 % + 0.3 V )
Range: ACA 10 A
Resolution: 0.01 A
Accuracy: ± ( 0.3 % + 0.03 A )
• Auto range.
• ACV, ACA accuracy is test under input signal is sine wave, 50/ 60 Hz.
• ACV ACA frequency response is from 40 to 400 Hz.
• Max. input value, AC voltage : 600V, AC current : 10 A.
• Accuracy @ 23℃ ± 5℃
PF (Power Factor)
Range: 1.00
Resolution: 0.01
Accuracy: ± ( 1 %+ 2d)
• ACV, ACA accuracy is test under input signal is sine wave, 50/ 60 Hz
• ACV ACA frequency response is from 40 to 400 Hz.
• Max. input value, AC voltage : 600V, AC current : 10 A.
• Accuracy @ 23℃ ± 5℃
Description
FEATURES:
• True power measurement.
• True rms measurement for ACV, ACA
• Watt : 0 to 6000 W x 1 W
• Power factor : 0.01 to 1.00 x 0.01 P
• ACV : 0 to 600 V X 0.1 V.
• ACA : 0 to 10.00 A x 0.01 A.
• ACV input impedance : 10 Mega OH
• Data Hold, Record ( Max., Min. ).
• RS232/USB Computer interface.
• Optional data Acquisition software, SW-U801-WIN, SW-E802.
• Optional USB cable, USB-01.
• Optional SD acard data logger, DL-9602SD.
• Professional precision WATT meter with 1 W resolution digital display , battery operated.
• LSI - circuit provides high reliability and durability.
• Directly operation.
• Measurement :
• WATT ( AC ) : 6000W x 1W. ACV : 600V x 0.1 V .
• ACA : 10 A x 10 m A .
• PF : 1.00 x 0.01
• True Power and Wide range 0 W to 6000 Watt.
• True RMS measurement of ACV / ACA.
• Super large LCD , Dual display at same time.
• Full function Auto range.
• Memory Record ( Max. , Min. ) , Data Hold.
• RS232 / USB Computer interface.
• Built-in low battery indicator.
• Built - in backlight easy to readout.
• Power : DC 9V ( 006P ) or AC to DC 9V adapter in.
