Features

Brand	Xinguang
Origin	China
Category	Civil Engineering, Universal Testing Machine
Price	Call for Price

Short Description

Model Number: WDW-10A

• Capacity: 10 kN (10,000 N)
• Force Range: 0.4 % – 100 % FS
• Force Accuracy: ±0.5 % or better
• Control System: Microcomputer + AC servo motor
• Software Features: Real-time curves, auto reports
• Test Modes: Tension, compression, bending, shear, peel/tear
• Applicable Materials: Metals, plastics, rubber, textiles, composites
• Safety Features: Limit switches, emergency stop, overload protection
• Standards Compliance: GB/T, ISO, ASTM based norms

Specifications

Brand Name: XINGUANG

Model Number: WDW-10A

Place of Origin: China



Key description:

Main machine: The machine adopts a desktop dual-space structure. It can be pulled up and down, and the beam can be lifted and lowered stepless Ly. The test space can be changed after the column, lead screw, and cover are replaced. The transmission system is composed of a special reducer for servo control, an arc synchronous toothed belt and a lead screw pair, which is stable in operation, high in efficiency and low in noise, pollution-free.



Main technical indicators:

1.Maximum test force: 10kN;

2.The test force is not divided into stages, and the accurate measurement range of the test force is 2%-100%FS;

3.Accuracy of test force measurement: ± 0.5%;

4.Displacement resolution: 0.01mm;

5.Displacement speed control range: 0.01mm/min~500mm/min stepless speed regulation;

6.Test space: 650mm;

7.Test space width: 400mm;

8.Power supply: 1.5kW, 220V, 50Hz.

9.Working environment: room temperature 10~35 ℃, humidity 20%~80%



Main configuration:

1.One 20kN main machine; (Aluminum alloy housing)

2.One set of precision ball screw;

3.Oneset Stretch accessories Flat ：0-7 Round：4-9-14）

4.One set of compression accessories; （Φ100mm）

5.One set of AC servo motor and servo speed control system;

6.Precision deceleration system;

7.One high-precision 10kN load sensor;

8.Brand computer.



Function introduction:

1.A built-in controller ensures that the machine can achieve constant displacement control.

2.AC servo motor is adopted, with stable and reliable performance, and protection devices such as overcurrent, overvoltage, overspeed and overload are provided. The speed regulation ratio can reach 1:5000.

3.The electrical control circuit refers to international standards, conforms to the national electrical standards for testing machines, has strong anti-interference ability, and ensures the stability of the controller and the accuracy of the experimental data.

4.Automatic shift: automatically switch to the appropriate range according to the load to ensure the accuracy of the measured data; It realizes the automatic shift, zero adjustment, calibration and storage of physical zero adjustment, gain adjustment and test force measurement in real sense, without any analog adjustment link, and the control circuit is highly integrated

5.Conditional storage: test control data and sample conditions can be made into modules to facilitate the batch test;

6.Automatic speed change: the speed of moving beam can be changed automatically or manually according to the preset procedure during the test;

7.Automatic calibration: the system can automatically calibrate the accuracy of indication;

8.Automatic saving: after the test, the test data and curves are automatically saved;

9.Process realization: the test process, measurement, display and analysis are all completed by the computer;

10.Batch test: for the samples with the same parameters, it can be completed in sequence after one setting;

11.Test software: English WINDOWS interface, menu prompt, mouse operation;



Software introduction:

1.Automatic stop: after the specimen breaks, the moving beam stops automatically;

2.Main machine double space: can do pull, press test without changing attachment, convenient for user, improve working efficiency;

3.Conditional disk: test control data and sample conditions can be made into modules, which facilitates batch testing;

4.Automatic speed change: the speed of moving beam can be changed automatically according to the pre-set program or the automatic calibration of;

5.Batch test: for the same parameters of the sample, once set can be completed in sequence;

6.Automatic calibration: The system can realize the calibration of indication accuracy automatically;

7.Automatic saving: the test data and curve are saved automatically;

8.Process realization: the test process, measurement, display and analysis are completed by microcomputer;

9.Test software: English windows interface, menu prompt, mouse operation;

10.Display mode: data and curves are displayed dynamically with the process of experiment;

11.Curve traversal: after the experiment is completed, the curve can be reanalyzed, and the test data corresponding to any point on the curve can be found with the mouse;

12.Curve selection: the stress-strain, force-displacement, force-time, displacement-time curves can be displayed and printed according to the need;

13.Pilot reports: reports can be prepared and printed in the format required by the user;

Quality assurance: Equipment in the ordering party after the formal acceptance of qualified, as a formal delivery. The warranty period of the equipment is one year from the date of the official delivery. In the warranty period, the supplier of equipment failure in a timely and free maintenance service. For non-man-made damage to all kinds of parts, timely and free replacement. Failure of the equipment during the use of the warranty period, supplier to the order party service, actively assist the ordering party to complete the maintenance task.

Description

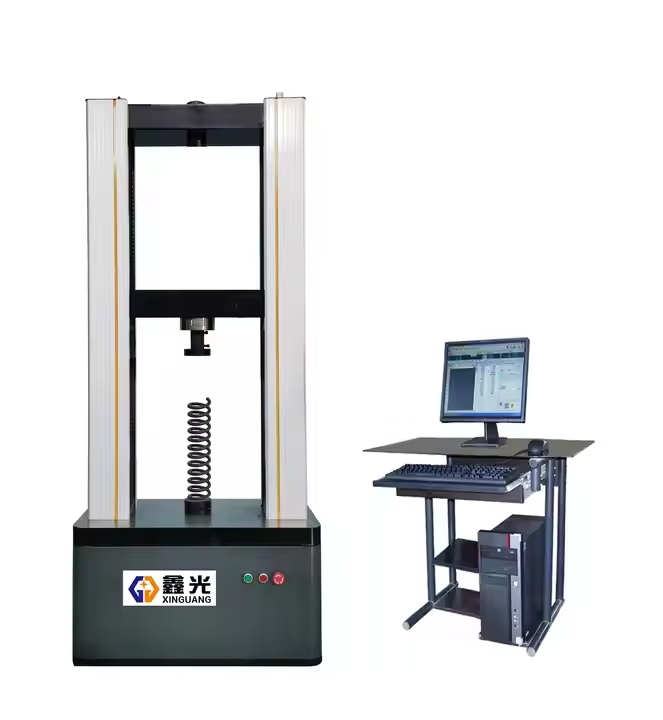

The WDW-10A Microcomputer Controlled Electronic Universal Testing Machine is a high-precision device used to evaluate the mechanical properties of materials under tension, compression, and bending. It features digital control, servo motor drive, and automated data acquisition, ensuring stable performance and accurate results. Suitable for laboratories, manufacturing, and research, it supports a wide range of test standards and material types.

The WDW‑10A is a 10 kN capacity, microcomputer‑controlled universal testing machine engineered for the precise evaluation of material mechanical properties. It supports tensile, compression, bending, peeling, tearing, and shearing tests across a variety of materials including metals, plastics, textiles, rubber, and composites
