Technical Specifications:
Brand: LUTRON
Model: RT-608

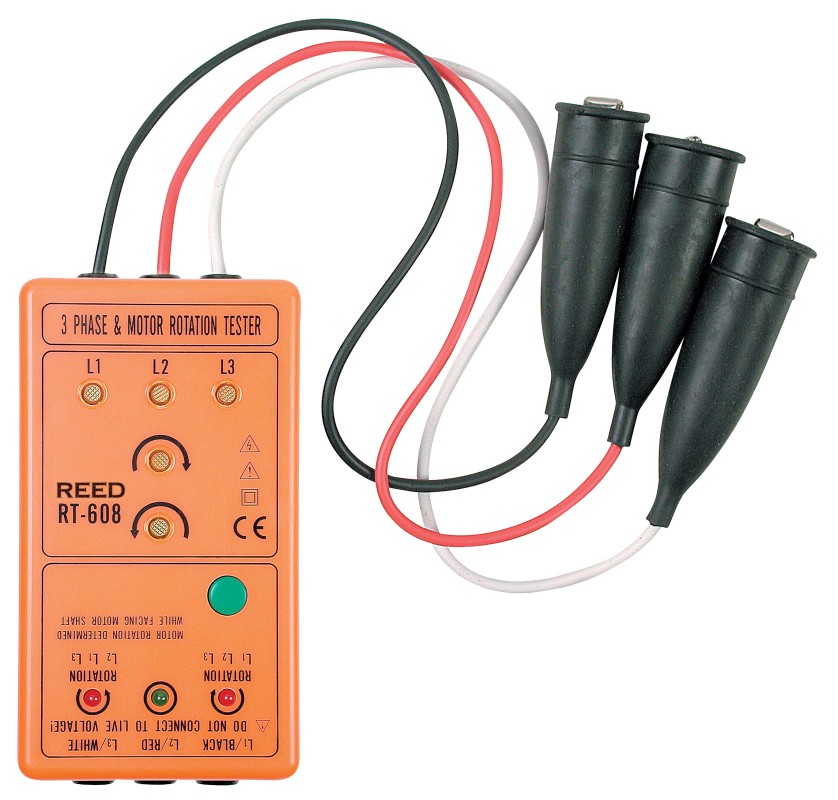

Function: 2 in 1 (3 PHASE ROTATION TESTER & MOTOR ROTATION FIELD TESTER).
3 PHASE ROTATION TESTER:
To display the phase sequence of the 3-phase power system.
MOTOR ROTATION FIELD TESTER:
To make the determination of the rotation field of an unconnected motor.
Power Supply: 006P DC 9 V battery
Power: 3 phase rotation tester: 7 mA
Consumption: Motor rotation field tester: 14 mA
Circuit Structure: Electronic ( not mechanical ).
Size: 150 x 85 x 40 mm ( 5.9 x 3.4 x 1.6 inch ).
Weight: 230g/0.5 LB ( w/o battery )
Accessories Included: Operation manual ............................. 1 PC.
Rubber alligator clip with banana plug (red/white / black wire ).... 3 PCs.
Operating procedures for MOTOR ROTATION FIELD TESTER
1. Plug in the "black wire "," red wire ", and " white wire " banana plug into the L1, L2, and L3 terminals.
2. Clamp the alligator clips on to the input power wire of the tested motor (there must be no voltage present).
3. Push the green operation button, then the correct phasing is ascertained by rotating the motor shaft.
3 PHASE ROTATION TESTER
Signal Input: 100 V AC up to 660 V AC max..
Voltage: 3 min. limit for over 500 V AC.
Signal Current Consumption: 7 mA at 500 V AC.
