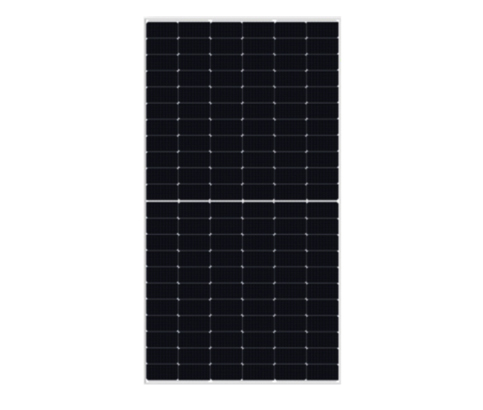

500W Solar Panel - Ipvisola
Model: YH500W-33MH
Dimensions (L / W / H): 2094×1134×35
Peak Power at STC (Pmax): 500
Maximum Power Voltage (Vmp): 38.44
Maximum Power Current (Imp): 13.01
Open Circuit Voltage (Voc): 45.74±3%
Short Circuit Current (Isc): 13.82±3%
Module Efficiency (%): 21.05
ELECTRICAL DATA (STC)
Model Type: YH500W-33MH
Dimensions (L / W / H): 2094×1134×35
Peak Power at STC (Pmax): 500
Maximum Power Voltage (Vmp): 38.44
Maximum Power Current (Imp): 13.01
Open Circuit Voltage (Voc): 45.74±3%
Short Circuit Current (Isc): 13.82±3%
Module Efficiency (%): 21.05
TEMPERATURE&MAXIMUM RATING
Maximum System Voltage (V): 1500/1000V
Maximum Series Fuse Rating (A): 20A
Power Tolerance: 0~+3 %
Pmax Temperature Coefficients (W/℃): -0.400 %
Voc Temperature Coefficients (V/℃): -0.290 %
Isc Temperature Coefficients (A/℃): +0.048 %
NOCT Nominal Operating Cell Temperature (℃):45±2°C
Operating and Storage Temperature (℃):-40°C ~+85°C
MECHANICAL CHARACTERISRTICS
Front Cover (Material / Thickness): low-iron tempered glass / 3.2mm
Cell (Quantity/Type/Dimensions): 182*91 Mono
No. of Cells: 132 (12*11)
Weight: 26.10kg
Frame (Material): Anodized Aluminium Alloy
Junction Box (Protection Degree): IP68 3 diodes
Cable (Length/Cross-Sectional Area): 4mm² cable 30cm+MC4
PACKING WAY
20FT container: 5Packages/155PCS
40HQ container: 22Packages/682PCS
